QWS 1000S Well Service Pump

The QWS 1000S is a versatile quintuplex pump featuring an efficient design that can be utilized in a back-to-back configuration.

Similar in design to the TWS 600S, the QWS 1000S offers a more powerful pump, capable of handling higher loads while still maintaining a compact design. Unique design features allow the QWS 1000S to be mounted in a back-to-back configuration on a single unit.

The QWS 1000S can be utilized in acidizing, cementing, gravel packing and snubbing operations.

QWS 1000S Performance Specs
Max Brake Horsepower:1,000BHP(746 Kw)        Approx. Length:50Inches(1,270 mm)
MaxRod Load Capacity:100,000 lb(45,359 kg)     Approx. Width: 73Inches(1,854mm)
Stroke Length:6 Inches(152.4 mm)                       Approx. Height:24Inches(609 mm)
Gear Ratio: 4.61 : 1                                               Approx.Weight(Dry):7,040 lb(3,193 kg)

QWS 1000S Performance Data

PLUNGER
DIAMETER

OUTPUT
PER REV

DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM

50/231

100/461

119/548

200/922

300/1383

450/2075

mm
(in)

gal/re
(liter/rev)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

63.5
(21/2)

2.4
(0.64)

121
(32)

1,436
(20372)

241
(64)

1,436
(20372)

287
(76)

1,435
(20368)

483
(127)

853
(12009)

724
(191)

568
(8066)

1,086
(287)

379
(5377)

69.9
(23/4)

2.9
(0.77)

146
(39)

1,186
(16836)

292
(77)

1,186
(16836)

347
(92)

1,186
(16836)

584
(154)

705
(9999)

876
(231)

470
(6666)

1,314
(347)

313
(4444)

76.2
(3)

3.5
(0.92)

174
(46)

997
(14147)

347
(92)

997
(14147)

413
(109)

997
(14147)

695
(184)

592
(8402)

1,042
(275)

395
(5601)

1,564
(413)

263
(3734)

88.9
(31/2)

4.7
(1.25)

236
(62)

732
(10394)

473
(125)

732
(10394)

562
(148)

732
(10394)

946
(250)

435
(6173)

1,419
(375)

290
(4115)

2,128
(562)

193
(2744)

101.6
(4)

6.2
(1.63)

309
(82)

561
(7958)

618
(163)

561
(7958)

734
(194)

561
(7958)

1,235
(326)

333
(4726)

1,853
(490)

222
(3151)

2,780
(734)

148
(2100)

114.3
(41/2)

7.8
(2.07)

391
(103)

443
(6288)

782
(207)

443
(6288)

929
(245)

443
(6288)

1,564
(413)

263
(3734)

2,345
(620)

175
(2489)

3,518
(929)

117
(1660)

INPUT POWER: BHP (Kw)

314(421)

628(842)

746(1,000)

746(1,000)

746(1000)

746(1,000)


1. Based on 90% ME and 100% VE - Intermittent Service Only.
2. For applications demanding pressures over 15,000 psi, contact Weir SPM Engineering.

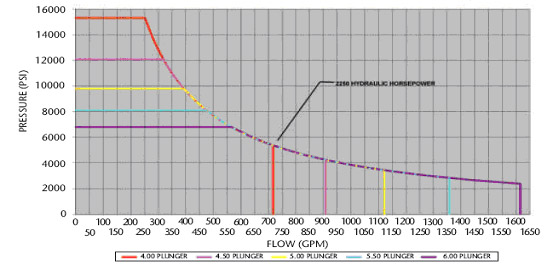

TWS 1000S Hydraulic Horsepower Curve
