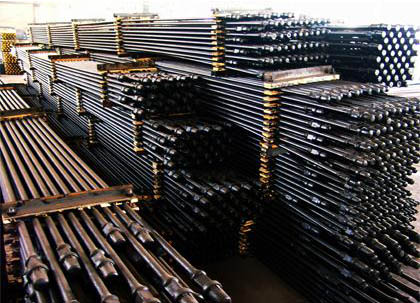

Solid Sucker Rod
Ordinary Sucker Rod is manufactured according to Spec 11B which mainly includes grade C and D. Grade H Sucker Rod is developed to suit for deep well and larger pumps.
Specifications:
|
Inch Nominal Size |
mm O.D. of Rod |
In Nominal Diameter of the Thread |
Width for the Spanner |
Length | ||
|
mm |
Inch |
mm |
ft | |||
|
⅝ |
15.88 |
1 5/16 |
22.2 |
⅞ |
7518 9042 |
25 30 |
|
¾ |
19.05 |
1 1/16 |
25.4 |
1 | ||
|
⅞ |
22.23 |
1 3/16 |
25.4 |
1 | ||
|
1 |
25.40 |
1⅜ |
33.3 |
1 5/16 | ||
|
1⅛ |
28.58 |
1 9/16 |
38.1 |
1½ | ||
|
Length of the pony rod: 20, 44, 68, 92, 116 inches | ||||||
