TWS 2250 Well Service Pump

The TWS 2250 is a dependable well service pump that has been utilized for years in the field with a superior performance record.

The TWS 2250 is a classic high-powered triplex plunger pump design. This durable pump has been used in the field for over a decade in fracturing duties.

The TWS 2250 is available in multiple plunger sizes offering impressive flow rate potential and can be customized with various features to be utilized in a variety of pumping operations.

TWS 2250 Performance Specs
Max Brake Horsepower:2,250 BHP(1,641 Kw)         Approx. Length:89.75 Inches (2,280 mm)
Max Rod Load Capacity:225,000 lb(102,060 kg)       Approx. Width:59.75 Inches(1,518 mm)
Stroke Length:8 Inches(203.2 mm)                            Approx. Height:44.25 Inches(1,124 mm)
Gear Ratio: 6.353 : 1                                                  Approx. Weight (Dry): 12,680 lb(5,751 kg)

TWS 2250 Performance Data

PLUNGER
DIAMETER

OUTPUT
PER REV

DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM

75/476

115/731

200/1271

300/1906

330/2096

mm
(in)

gal/rev
(liter/rev)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

88.9
(31/2)

3.8
(1.00)

284
(75)

1648
(23386)

435
(115)

1648
(23386)

757
(200)

1223
(17361)

1135
(300)

816
(11574)

1249
(330)

742
(10522)

95.3
(33/4)

4.3
(1.15)

326
(86)

1436
(20372)

499
(132)

1436
(20372)

869
(229)

1066
(15124)

1303
(344)

711
(10082)

1433
(379)

646
(9166)

101.6
(4)

4.9
(1.31)

371
(98)

1262
(17905)

568
(150)

1262
(17905)

988
(261)

937
(13292)

1483
(392)

624
(8861)

1631
(431)

568
(8056)

114.3
(41/2)

6.3
(1.65)

469
(124)

997
(14147)

719
(190)

997
(14147)

1251
(330)

740
(10502)

1876
(496)

493
(7002)

2064
(545)

449
(6365)

127.0
(5)

7.7
(2.04)

579
(153)

808
(11459)

888
(235)

808
(11459)

1544
(408)

600
(8507)

2316
(612)

400
(5671)

2548
(673)

363
(5156)

139.7
(51/2)

9.3
(2.47)

701
(185)

667
(9470)

1074
(284)

667
(9470)

1869
(494)

495
(7031)

2803
(741)

330
(4687)

3083
(815)

300
(4261)

146.1
(53/4)

10.2
(2.70)

766
(202)

611
(8665)

1174
(310)

611
(8665)

2042
(540)

453
(6433)

3063
(809)

302
(4288)

3370
(890)

275
(3898)

152.4
(6)

11.1
(2.94)

834
(220)

561
(7958)

1279
(338)

561
(7958)

2224
(588)

416
(5908)

3336
(881)

278
(3938)

3669
(969)

252
(3580)

165.1
(61/2)

13.0
(3.45)

979
(259)

478
(6781)

1501
(396)

478
(6781)

2610
(690)

355
(5034)

3915
(1034)

236
(3356)

4306
(1138)

215
(3051)

171.5
(63/4)

14.1
(3.72)

1055
(279)

443
(6288)

1618
(428)

443
(6288)

2810
(744)

329
(4668)

4222
(1115)

219
(3112)

4644
(1227)

199
(2829)

177.8
(7)

15.1
(4.00)

1135
(300)

412
(5847)

1740
(460)

412
(5847)

3027
(800)

306
(4340)

4540
(1200)

204
(2894)

4994
(1319)

185
(2630)

190.5
(71/2)

17.4
(4.59)

1303
(344)

359
(5093)

1998
(528)

359
(5093)

3475
(918)

266
(3781)

5212
(1377)

178
(2521)

5733
(1515)

161
(2291)

INPUT POWER: BHP (Kw)

848(1,137)

1,301(1,743)

1,679(2,250)

1,679(2,250)

1,679(2,250)

1 .Based on 90% ME and 100% VE - Intermittent Service Only.
2 .For applications demanding pressures over 15,000 psi, contact Weir SPM Engineering.

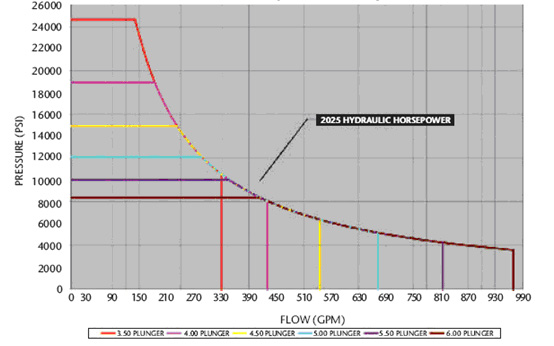

TWS 2250 Hydraulic Horsepower Curve
