TWS 600S Well Service Pump

The TWS 600S is a versatile pump featuring a patented design, which can be utilized in a back-to-back configuration.

A patented feature unique to the TWS 600S pump is it’s offset crankshaft / crosshead design which substantially reduces the load on both the crosshead and crosshead guides, as well as the main roller bearings supporting the crankshaft.

With this patented offset, the pump develops a lower connecting rod angle on the power stroke. The result is reduced wear between the crosshead and the guide, increasing product life.

The TWS 600S can be utilized in acidizing, cementing, gravel packing and snubbing operations.

TWS 600S Performance Specs
Max Brake Horsepower :600 BHP (447 Kw)             Approx. Length:50.25 Inches (1,276 mm)
Max Rod Load Capacity:100,000 lb (43,360 kg)        Approx. Width: 52.93 Inches (1,344 mm)
Stroke Length:6 Inches(152.4 mm)                            Approx. Height:23.88 Inches(607 mm)
Gear Ratio: 4.61 : 1                                                    Approx. Weight (Dry): 4 , 9 40 lb (2,240 kg)

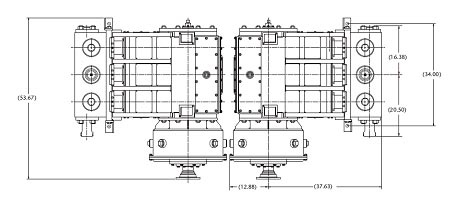

TWS 600S Back-to-Back Layout

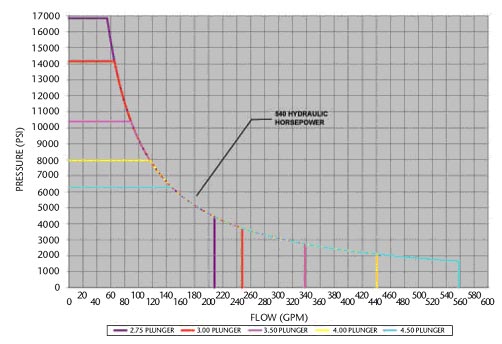

TWS 600S Hydraulic Horsepower Curve

TWS 600S Performance Data

PLUNGER
DIAMETER		 OUTPUT
PER REV		 DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM

50/230

120/552

200/920

300/1380

450/2070

mm
(in)

gal/rev
(liter/rev)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

gpm
(lpm)

Kg/cm2
(PSI)

63.5
(21/2)

1.4
(0.38)

72
(19)

1,436
(20,372)

174
(46)

1,421
(20,165)

290
(76)

853
(12,099)

434
(115)

568
(8,066)

651
(172)

379
(5,377)

69.9
(23/4)

1.8
(0.46)

87
(23)

1,186
(16,836)

210
(56)

1,174
(16,665)

350
(93)

705
(9,999)

526
(139)

470
(6,666)

788
(208)

313
(4,444)

76.2
(3)

2.1
(0.55)

104
(28)

997
(14,147)

250
(66)

987
(14.003)

417
(110)

592
(8,402)

625
(165)

395
(5,601)

938
(248)

263
(3,734)

88.9
(31/2)

2.8
(0.75)

142
(37)

732
(10,394)

341
(90)

725
(10,288)

568
(150)

435
(6,173)

851
(225)

290
(4,115)

1,277
(337)

193
(2,744)

101.6
(4)

3.7
(0.98)

185
(49)

561
(7,958)

445
(118)

555
(7,877)

741
(196)

333
(4,726)

1,112
(294)

222
(3,151)

1,668
(441)

148
(2,100)

114.3
(41/2)

4.7
(1.24)

235
(62)

443
(6,288)

563
(149)

439
(6,224)

938
(248)

263
(3,734)

1,407
(372)

175
(2,489)

2,111
(558)

117
(1,660)

NPUT POWER: BHP (Kw)

188(253)

448(600)

448(600)

448(600)

448(600)

1 .Based on 90% ME and 100% VE - Intermittent Service Only.
2 .For applications demanding pressures over 15,000 psi, contact Weir SPM Engineering.
